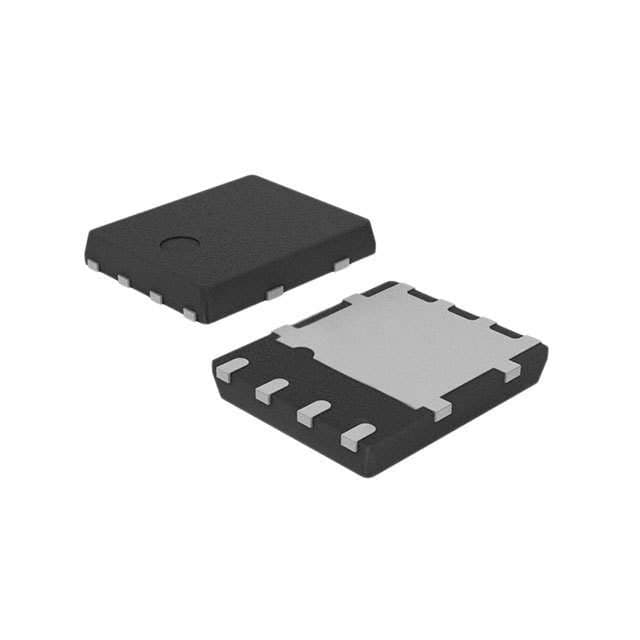

N-channel Power MOSFET featuring 100V drain-source breakdown voltage and 6mΩ maximum drain-source on-resistance. Delivers 107A continuous drain current with a 5W maximum power dissipation. Designed for surface mounting in a 5x6 PowerFLAT package, this component offers fast switching characteristics with a 21ns fall time, 25ns turn-on delay, and 52ns turn-off delay. Operating temperature range spans from -55°C to 175°C, with lead-free and RoHS compliance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics STL110N10F7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Continuous Drain Current (ID) | 107A |
| Drain to Source Breakdown Voltage | 100V |
| Drain to Source Resistance | 6mR |
| Drain to Source Voltage (Vdss) | 100V |
| Drain-source On Resistance-Max | 6mR |
| Fall Time | 21ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 0.95mm |
| Input Capacitance | 5.117nF |
| Lead Free | Lead Free |
| Length | 5.4mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 5W |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 5W |
| Rds On Max | 6mR |
| RoHS Compliant | Yes |
| Series | DeepGATE™, STripFET™ VII |
| Turn-Off Delay Time | 52ns |
| Turn-On Delay Time | 25ns |
| Width | 6.35mm |
| RoHS | Compliant |
