Stmicroelectronics
STL8N10LF3
Automotive-grade N-channel 100 V, 25 mOhm typ., 7.8 A STripFET F3 Power MOSFET in a PowerFLAT 5x6 package
MountingSurface Mount
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Stmicroelectronics STL8N10LF3 technical specifications.
General
| Continuous Drain Current (ID) | 20A |
| Drain to Source Breakdown Voltage | 100V |
| Drain to Source Resistance | 35mR |
| Drain to Source Voltage (Vdss) | 100V |
| Fall Time | 5.2ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 1mm |
| Input Capacitance | 970pF |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 70W |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Radiation Hardening | No |
| Rds On Max | 35mR |
| RoHS Compliant | Yes |
| Series | STripFET™ III |
| Turn-Off Delay Time | 50.6ns |
| Turn-On Delay Time | 8.7ns |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STL8N10LF3 Datasheet
Download the complete datasheet for Stmicroelectronics STL8N10LF3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

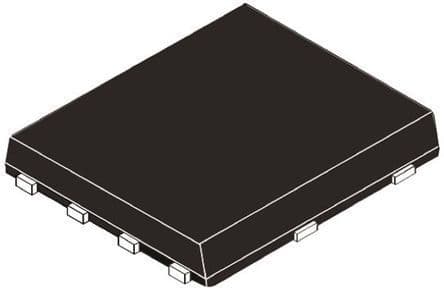

Product Images
