Serial-interfaced 6-digit LED controller featuring 48 segments and integrated keyscan functionality. Operates within a 4.5V to 5.5V supply voltage range, with a typical 5V operating voltage. Delivers up to 40mA output current per channel and supports a 1MHz switching frequency. Packaged in a lead-free SO surface mount configuration, this RoHS compliant component offers a maximum power dissipation of 1.2W.
PackageSO
Current15A
MountingSurface Mount
Power1.2W
Quick Jump:
Technical Specifications
Stmicroelectronics STLED316SMTR technical specifications.
General
Package/Case
SO
Interface
Serial
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Min Output Voltage
5.5V
Max Power Dissipation
1.2W
Max Supply Current
15mA
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Segments
48
Operating Supply Voltage
5V
Output Current per Channel
40mA
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
1.2W
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
15A
Switching Frequency-Max
1MHz
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STLED316SMTR Datasheet
Download the complete datasheet for Stmicroelectronics STLED316SMTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

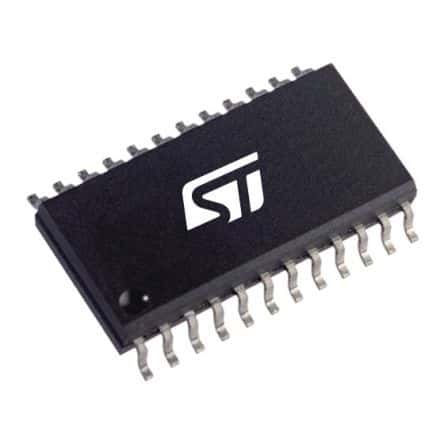

Product Images
