Surface mount general power management IC featuring a low power reset circuit. Monitors a single voltage with a reset threshold range of 2.8V to 2.97V, providing an active low reset output. Operates from a 1.2V to 5.5V supply voltage with a maximum supply current of 16µA and a typical operating current of 4µA. Housed in a SOT-23 package, this component offers a maximum power dissipation of 320mW and a maximum operating temperature of 105°C.
PackageSOT-23
Current16uA
MountingSurface Mount
Power320mW
Quick Jump:
Technical Specifications
Stmicroelectronics STM1816SWX7F technical specifications.
General
| Package/Case | SOT-23 |
| Height | 1.02mm |
| Lead Free | Lead Free |
| Length | 3.04mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20mA |
| Max Power Dissipation | 320mW |
| Max Reset Threshold Voltage | 2.97V |
| Min Reset Threshold Voltage | 2.8V |
| Max Supply Current | 16uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.2V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 4uA |
| Overvoltage Threshold | 2.97V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 320mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| Reset Timeout | 100ms |
| RoHS Compliant | Yes |
| Supply Current | 16uA |
| Termination | SMD/SMT |
| Threshold Voltage | 2.88V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 2.8V |
| Watchdog Timer | No |
| Width | 1.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STM1816SWX7F Datasheet
Download the complete datasheet for Stmicroelectronics STM1816SWX7F to view detailed technical specifications.
No datasheet is available for this part.

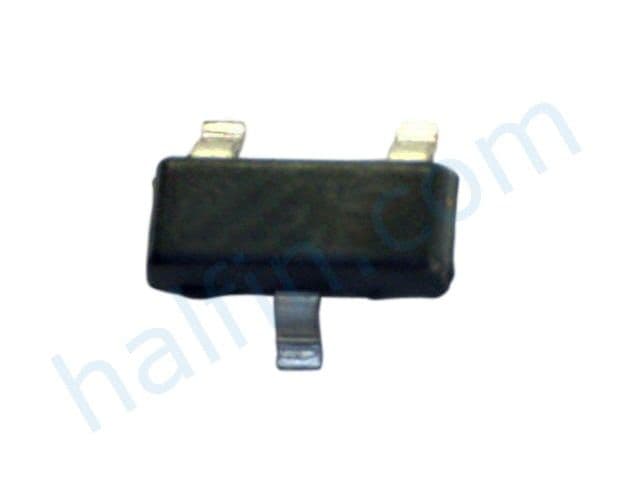

Product Images
