32-bit ARM Cortex-M0 microcontroller featuring 64KB FLASH memory and an 8KB RAM. Operates at a maximum frequency of 48MHz, with a 32-bit data bus width. Offers 39 programmable I/Os, including 2x I2C, 2x SPI, and multiple UART/USART interfaces. Includes 12 ADC channels and 6 PWM channels, supported by 7 timers/counters and DMA. Packaged in an LQFP surface mount case, operating between -40°C and 85°C.
Frequency48MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F030C8T6TR technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
48MHz
Height
1.45mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
7.2mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Max Power Dissipation
364mW
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.4V
Mount
Surface Mount
Number of ADC Channels
12
Number of I/Os
39
Number of I2C Channels
2
Number of Programmable I/O
39
Number of PWM Channels
6
Number of SPI Channels
2
Number of Timers/Counters
7
Oscillator Type
Internal
Package Quantity
2400
Packaging
Tape and Reel
Peripherals
POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F0
Watchdog Timer
Yes
Weight
0.006409oz
Width
7.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F030C8T6TR Datasheet
Download the complete datasheet for Stmicroelectronics STM32F030C8T6TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

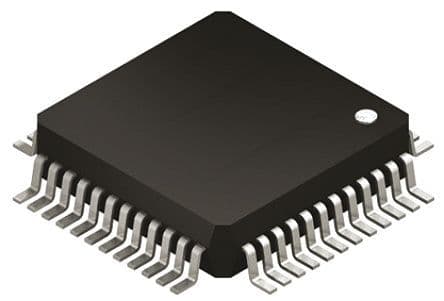

Product Images
