32-bit ARM Cortex-M0 microcontroller featuring 32KB FLASH memory and 4KB RAM. Operates at up to 48MHz with a 1.8V supply voltage, supporting a range of interfaces including I2C, SPI, USART, and USB. Includes 12 ADC channels, 14 programmable I/Os, and 6 timers/counters. Packaged in TSSOP with a wide operating temperature range of -40°C to 85°C.
Frequency48MHz
PackageTSSOP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F038F6P6 technical specifications.
General
Package/Case
TSSOP
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, USART, IrDA, UART, LIN, I2S
Max Frequency
48MHz
Max Operating Temperature
85°C
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
182mW
Max Supply Voltage
1.944V
Min Supply Voltage
1.656V
Number of ADC Channels
12
Number of I/Os
14
Number of Programmable I/O
14
Number of Timers/Counters
6
Operating Supply Voltage
1.8V
Oscillator Type
Internal
Package Quantity
1480
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA
RAM Size
4KB
RoHS Compliant
Yes
Series
STM32 F0
Watchdog Timer
Yes
Weight
0.006737oz
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F038F6P6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F038F6P6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

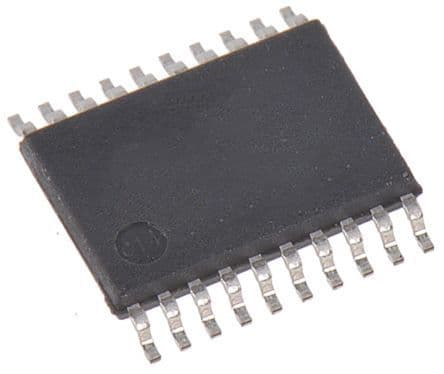

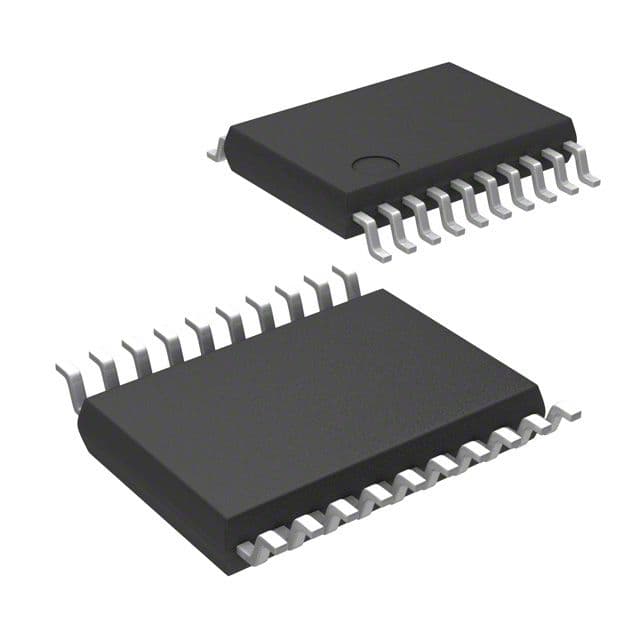

Product Images
