32-bit ARM Cortex-M0 microcontroller featuring 64KB FLASH memory and 8KB RAM. Operates at up to 48MHz with 39 programmable I/Os. Includes 2x I2C, 2x SPI, UART, USART, LIN, I2S, HDMI, and IrDA interfaces. Equipped with 13 ADC channels, 6 PWM channels, 8 timers/counters, and 1 Ethernet channel. Packaged in LQFP, this RoHS compliant MCU supports a supply voltage range of 2V to 3.6V and operates from -40°C to 105°C.
Frequency48MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F051C8T7 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
48MHz
Height
1.45mm
Interface
I2C, SPI, HDMI, IrDA, UART, USART, LIN, I2S
Lead Free
Lead Free
Length
7.2mm
Max Frequency
48MHz
Max Operating Temperature
105°C
Max Power Dissipation
364mW
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Number of ADC Channels
13
Number of Ethernet Channels
1
Number of I/Os
39
Number of I2C Channels
2
Number of Programmable I/O
39
Number of PWM Channels
6
Number of SPI Channels
2
Number of Timers/Counters
8
Oscillator Type
Internal
Package Quantity
250
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32 F0
Watchdog Timer
Yes
Width
7.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F051C8T7 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F051C8T7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

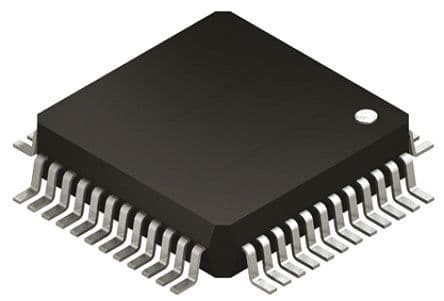

Product Images
