32-bit ARM Cortex-M0 microcontroller featuring 64KB FLASH memory and 8KB RAM. Operates at a maximum frequency of 48MHz with 27 programmable I/Os. Supports I2C, SPI, HDMI, IrDA, UART, USART, LIN, and I2S interfaces. Includes 1 ADC channel, 6 PWM channels, 8 timers/counters, and peripherals like POR, WDT, DMA. Packaged in UFQFPN with a 5.1mm x 5.1mm x 0.55mm profile, operating from 2V to 3.6V supply voltage.
Frequency48MHz
PackageUFQFPN
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F051K8U6TR technical specifications.
General
Package/Case
UFQFPN
Core Architecture
ARM
Data Bus Width
32b
Height
0.55mm
Interface
I2C, SPI, HDMI, IrDA, UART, USART, LIN, I2S
Lead Free
Lead Free
Length
5.1mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Max Power Dissipation
526mW
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Number of ADC Channels
1
Number of I/Os
27
Number of I2C Channels
1
Number of Programmable I/O
27
Number of PWM Channels
6
Number of SPI Channels
1
Number of Timers/Counters
8
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
3000
Packaging
Tape and Reel
Peripherals
POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
STM32F0
Watchdog Timer
Yes
Width
5.1mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F051K8U6TR Datasheet
Download the complete datasheet for Stmicroelectronics STM32F051K8U6TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

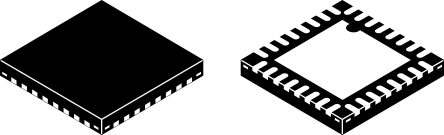

Product Images
