32-bit ARM Cortex-M0 microcontroller featuring 16KB FLASH memory and 4KB RAM. Operates at up to 48MHz with 55 programmable I/Os. Includes I2C, SPI, UART, USART, LIN, I2S, and HDMI interfaces, along with 19 ADC channels and 8 timers. Packaged in LQFP with a temperature range of -40°C to 85°C.
Frequency48MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F051R4T6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
48MHz
Height
1.45mm
Interface
I2C, SPI, HDMI, IrDA, UART, USART, LIN, I2S
Lead Free
Lead Free
Length
10.2mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
444mW
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
2V
Number of ADC Channels
19
Number of I/Os
55
Number of I2C Channels
1
Number of Programmable I/O
55
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
8
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32 F0
Watchdog Timer
Yes
Width
10.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F051R4T6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F051R4T6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

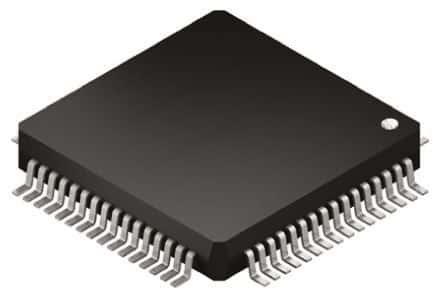

Product Images
