Stmicroelectronics
STM32F071CBU7TR
Mainstream Arm Cortex-M0 Access line MCU with 128 Kbytes of Flash memory, 48 MHz CPU and CEC functions
Frequency48MHz
PackageUFQFPN
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F071CBU7TR technical specifications.
General
Package/Case
UFQFPN
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, HDMI, IrDA, UART, USART, I2S
Max Frequency
48MHz
Max Operating Temperature
105°C
Max Power Dissipation
625mW
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of I/Os
37
Number of Programmable I/O
37
Number of Timers/Counters
9
Oscillator Type
Internal
Package Quantity
2500
Peripherals
POR, PWM, WDT, DMA
RAM Size
16KB
RoHS Compliant
Yes
Series
STM32F0
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F071CBU7TR Datasheet
Download the complete datasheet for Stmicroelectronics STM32F071CBU7TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

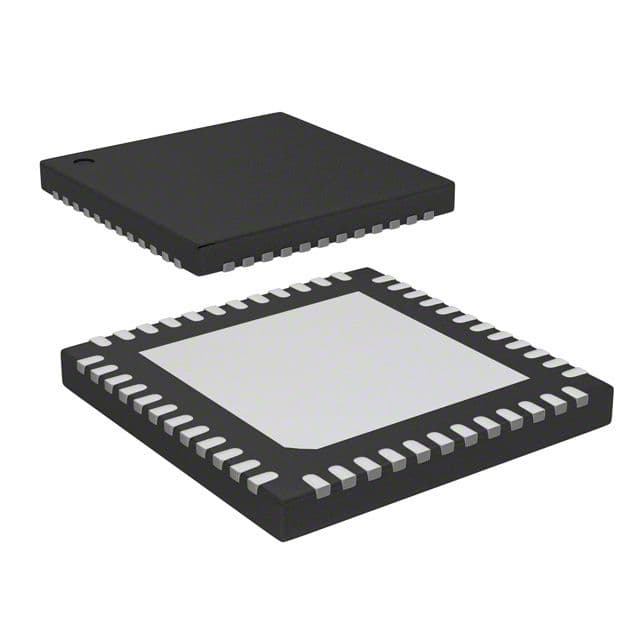

Product Images
