Stmicroelectronics
STM32F071CBY6TR
Mainstream Arm Cortex-M0 Access line MCU with 128 Kbytes of Flash memory, 48 MHz CPU and CEC functions
Frequency48MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F071CBY6TR technical specifications.
General
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, HDMI, IrDA, UART, USART, I2S
Lead Free
Lead Free
Max Frequency
48MHz
Max Operating Temperature
85°C
Max Power Dissipation
408mW
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of I/Os
37
Number of Programmable I/O
37
Number of Timers/Counters
9
Oscillator Type
Internal
Package Quantity
5000
Peripherals
POR, PWM, WDT, DMA
RAM Size
16KB
RoHS Compliant
Yes
Series
STM32F0
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F071CBY6TR Datasheet
Download the complete datasheet for Stmicroelectronics STM32F071CBY6TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

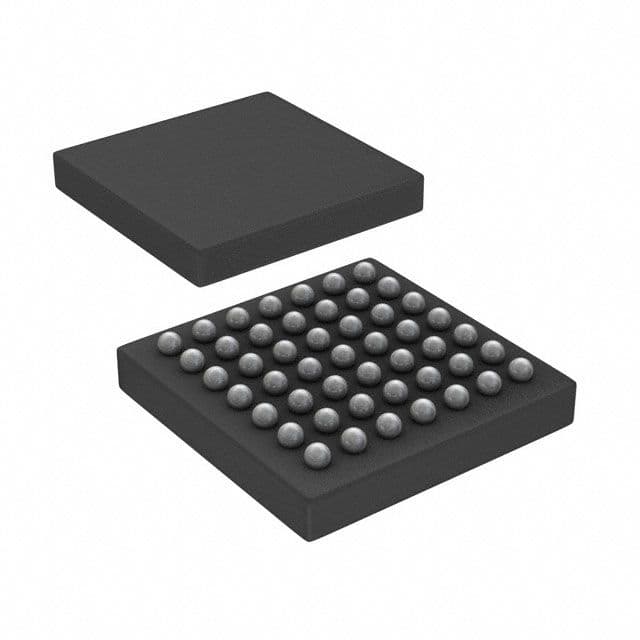

Product Images
