32-bit ARM Cortex-M0+ microcontroller featuring 128KB FLASH memory and 16KB RAM. Operates at a maximum frequency of 48MHz with 87 programmable I/Os. Supports I2C, SPI, HDMI, IrDA, UART, USART, and I2S interfaces. Includes 19 ADC channels and 9 timers/counters, with peripherals like POR, PWM, WDT, and DMA. Packaged in an LQFP surface mount case, this RoHS compliant component operates from -40°C to 85°C with a supply voltage range of 2V to 3.6V.
Frequency48MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F071VBT6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, HDMI, IrDA, UART, USART, I2S
Lead Free
Lead Free
Max Frequency
48MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
476mW
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
19
Number of I/Os
87
Number of Programmable I/O
87
Number of Timers/Counters
9
Oscillator Type
Internal
Package Quantity
540
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA
RAM Size
16KB
RoHS Compliant
Yes
Series
STM32F0
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F071VBT6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F071VBT6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

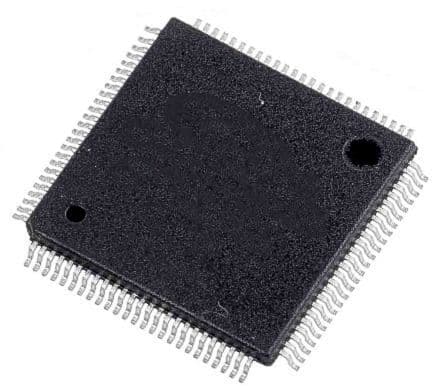

Product Images
