32-bit ARM Cortex-M0 microcontroller featuring 128KB FLASH and 16KB RAM. Operates at up to 48MHz with 51 programmable I/Os. Integrated peripherals include USB, CAN, CEC, I2C (2 channels), SPI (2 channels), UART (4 channels), and 18 PWM channels. Offers 19 A/D converter channels and 2 D/A converter channels. Packaged in LQFP, this RoHS compliant MCU operates from 2V to 3.6V with a temperature range of -40°C to 85°C.
Frequency48MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F072RBT6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
48MHz
Height
1.6mm
Interface
I2C, SPI, USB, CAN, HDMI, IrDA, UART, USART, LIN, I2S
Lead Free
Lead Free
Max Frequency
48MHz
Max Operating Temperature
85°C
Max Power Dissipation
455mW
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Nominal Supply Current
1.8uA
Number of A/D Converters
1
Number of ADC Channels
19
Number of Channels
16
Number of D/A Converters
2
Number of I/Os
51
Number of I2C Channels
2
Number of Programmable I/O
51
Number of PWM Channels
18
Number of SPI Channels
2
Number of Timers/Counters
9
Number of UART Channels
4
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
960
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32 F0
Watchdog Timer
Yes
Weight
0.012088oz
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F072RBT6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F072RBT6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

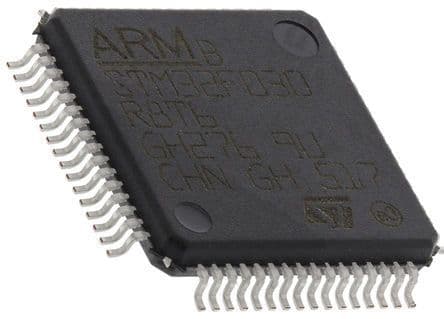

Product Images
