Stmicroelectronics
STM32F072V8H6
Mainstream Arm Cortex-M0 USB line MCU with 64 Kbytes of Flash memory, 48 MHz CPU, USB, CAN and CEC functions
Frequency48MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F072V8H6 technical specifications.
General
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, USB, HDMI, IrDA, UART, USART, CAN, I2S
Lead Free
Lead Free
Max Frequency
48MHz
Max Operating Temperature
85°C
Max Power Dissipation
364mW
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of I/Os
87
Number of Programmable I/O
87
Number of Timers/Counters
9
Oscillator Type
Internal
Package Quantity
2496
Peripherals
POR, PWM, WDT, DMA
RAM Size
16KB
RoHS Compliant
Yes
Series
STM32F0
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F072V8H6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F072V8H6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

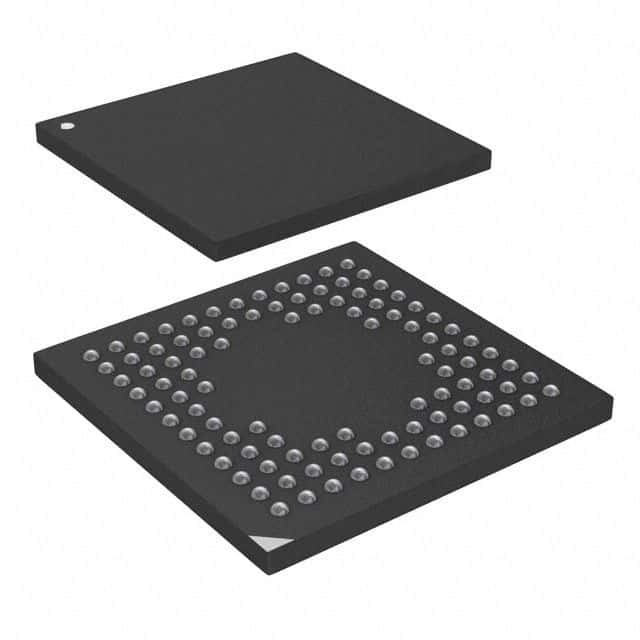

Product Images
