Stmicroelectronics
STM32F072VBH6
Mainstream Arm Cortex-M0 USB line MCU with 128 Kbytes of Flash memory, 48 MHz CPU, USB, CAN and CEC functions
Frequency48MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F072VBH6 technical specifications.
General
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Interface | I2C, SPI, USB, HDMI, IrDA, UART, USART, CAN, LIN, I2S |
| Lead Free | Lead Free |
| Max Frequency | 48MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 364mW |
| Memory Size | 128KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of I/Os | 87 |
| Number of Programmable I/O | 87 |
| Number of Timers/Counters | 9 |
| Oscillator Type | Internal |
| Package Quantity | 2496 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT, DMA |
| RAM Size | 16KB |
| RoHS Compliant | Yes |
| Series | STM32F0 |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STM32F072VBH6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F072VBH6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

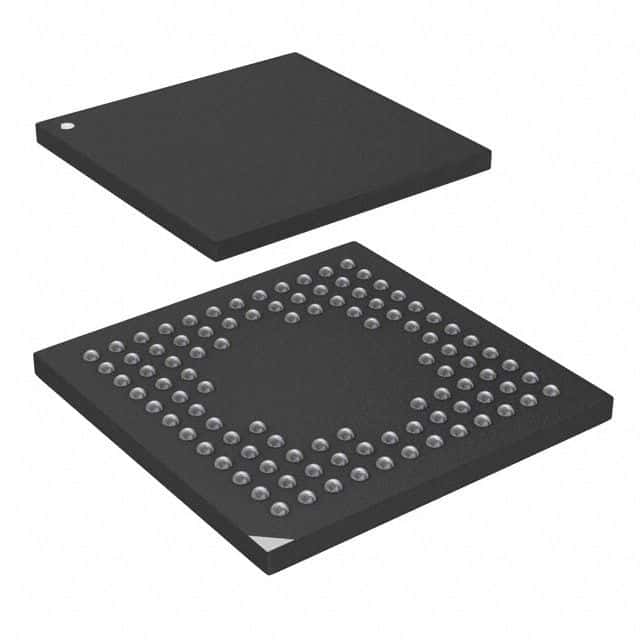

Product Images
