Stmicroelectronics
STM32F078CBT6
Mainstream Arm Cortex-M0 Low-voltage line 1,8V MCU with 128 Kbytes of Flash memory, 48 MHz CPU, USB and CEC functions
Frequency48MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F078CBT6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, USB, HDMI, IrDA, UART, USART, I2S
Max Frequency
48MHz
Max Operating Temperature
85°C
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
370mW
Mount
Surface Mount
Number of I/Os
36
Number of Programmable I/O
36
Number of Timers/Counters
9
Oscillator Type
Internal
Package Quantity
1500
Peripherals
POR, PWM, WDT, DMA
RAM Size
16KB
RoHS Compliant
Yes
Series
STM32F0
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F078CBT6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F078CBT6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

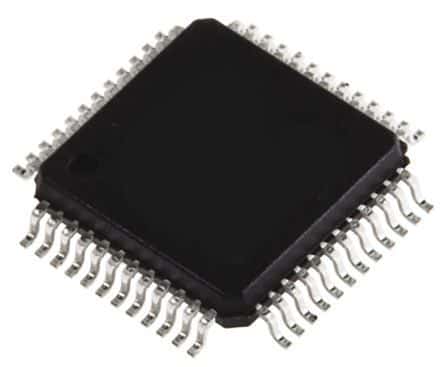

Product Images
