32-bit ARM Cortex-M3 microcontroller featuring 64KB FLASH memory and 8KB RAM. Operates at up to 24MHz with 80 programmable I/Os. Includes 2x I2C, 2x SPI, UART, USART, LIN, and IrDA interfaces. Offers 16 ADC channels, 6 PWM channels, 6 timers, and integrated POR, WDT, DMA, and temperature sensor peripherals. Packaged in LQFP, this RoHS compliant component operates from 2V to 3.6V supply voltage.
Frequency24MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F100V8T6B technical specifications.
General
| Package/Case | LQFP |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 24MHz |
| Height | 1.45mm |
| Interface | I2C, SPI, IrDA, UART, USART, LIN |
| Lead Free | Lead Free |
| Length | 14.2mm |
| Max Frequency | 24MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 434mW |
| Max Supply Voltage | 3.6V |
| Memory Size | 64KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Number of ADC Channels | 16 |
| Number of I/Os | 80 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 80 |
| Number of PWM Channels | 6 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 6 |
| Oscillator Type | Internal |
| Package Quantity | 90 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT, DMA, Temp Sensor, I2C |
| Radiation Hardening | No |
| RAM Size | 8KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | STM32F1 |
| Watchdog Timer | Yes |
| Width | 14.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STM32F100V8T6B Datasheet
Download the complete datasheet for Stmicroelectronics STM32F100V8T6B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

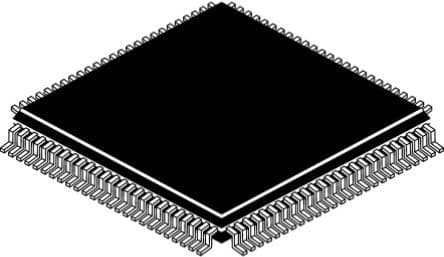

Product Images
