32-bit ARM Cortex-M3 microcontroller featuring 128KB FLASH memory and a 36MHz CPU. This MCU offers 16KB RAM, 37 programmable I/Os, and supports I2C, SPI, IrDA, UART, USART, and LIN interfaces. It includes 10 ADC channels, 12 PWM channels, 2 I2C channels, 2 SPI channels, and 3 timers/counters, with integrated POR, WDT, DMA, and temperature sensor peripherals. Operating from 2V to 3.6V, this RoHS compliant component is housed in an LQFP package with SMD/SMT termination.
Frequency36MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F101CBT6 technical specifications.
General
Address Bus Width
32b
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Density
128KB
Frequency
36MHz
Height
1.45mm
Interface
I2C, SPI, IrDA, UART, USART, LIN
Lead Free
Lead Free
Length
7mm
Max Frequency
36MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
363mW
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
2V
Number of ADC Channels
10
Number of Bits
32
Number of I/Os
37
Number of I2C Channels
2
Number of Programmable I/O
37
Number of PWM Channels
12
Number of SPI Channels
2
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
250
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Temp Sensor, I2C
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32 F1
Termination
SMD/SMT
Watchdog Timer
Yes
Width
7.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F101CBT6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F101CBT6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

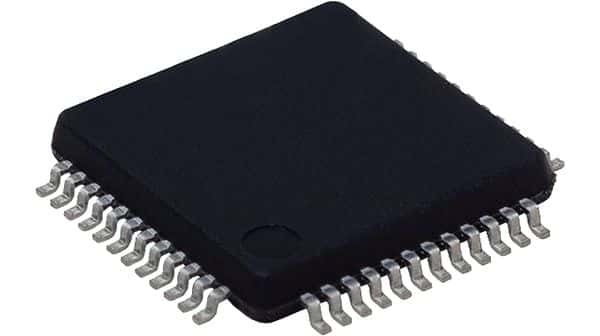

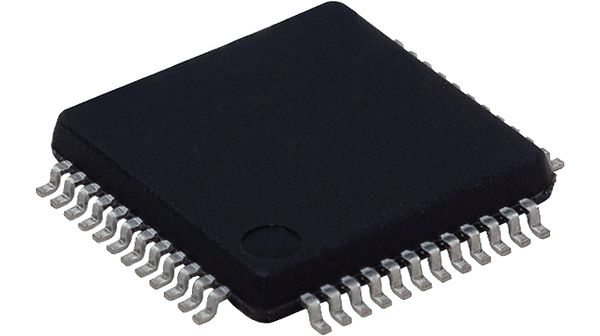

Product Images
