32-bit ARM Cortex-M3 microcontroller featuring a 36MHz CPU and 16KB Flash memory. Offers 4KB RAM, 26 programmable I/Os, and interfaces including I2C, SPI, UART, and USART. Includes 10 ADC channels, 4 PWM channels, and 2 timers/counters. Operates from 2V to 3.6V supply voltage, with a temperature range of -40°C to 85°C. Packaged in UFQFPN.
Frequency36MHz
PackageUFQFPN
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F101T4U6A technical specifications.
General
Package/Case
UFQFPN
Core Architecture
ARM
Data Bus Width
32b
Frequency
36MHz
Height
0.95mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
6mm
Max Frequency
36MHz
Max Operating Temperature
85°C
Max Power Dissipation
1.11W
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Number of ADC Channels
10
Number of I/Os
26
Number of I2C Channels
1
Number of Programmable I/O
26
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
490
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Temp Sensor, I2C
Radiation Hardening
No
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F1
Watchdog Timer
Yes
Width
6.125mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F101T4U6A Datasheet
Download the complete datasheet for Stmicroelectronics STM32F101T4U6A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

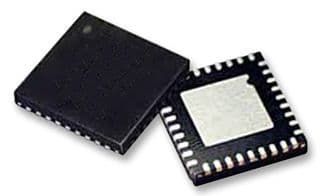

Product Images
