32-bit ARM Cortex-M3 microcontroller featuring 64KB Flash memory and a 36MHz CPU. This MCU offers 10KB RAM, 80 I/Os, and operates from 2V to 3.6V supply. Integrated peripherals include I2C, SPI, UART, USART, LIN, DMA, POR, WDT, and PWM. The LQFP package is SMD/SMT terminated, with a temperature range of -40°C to 85°C.
Frequency36MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F101V8T6 technical specifications.
General
Address Bus Width
32b
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Density
64KB
Frequency
36MHz
Height
1.45mm
Interface
I2C, SPI, IrDA, UART, USART, LIN
Lead Free
Lead Free
Length
14mm
Max Frequency
36MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
434mW
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
2V
Number of ADC Channels
16
Number of Bits
32
Number of I/Os
80
Number of I2C Channels
2
Number of Programmable I/O
100
Number of PWM Channels
4
Number of SPI Channels
2
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Temp Sensor, I2C
Radiation Hardening
No
RAM Size
10KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32 F1
Termination
SMD/SMT
Watchdog Timer
Yes
Width
14.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F101V8T6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F101V8T6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

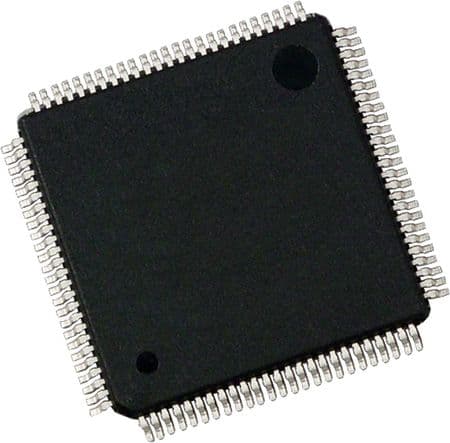

Product Images
