32-bit ARM Cortex-M3 microcontroller featuring 128KB FLASH memory and a 36MHz CPU. This MCU offers 16 ADC channels, 2 I2C, 2 SPI, and multiple UART/USART interfaces, along with 4 PWM channels and 3 timers. Operating from 2V to 3.6V, it supports an extended temperature range of -40°C to 85°C. The LQFP package provides 80 I/Os and is RoHS compliant.
Frequency36MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F101VBT6 technical specifications.
General
Address Bus Width
32b
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Density
128KB
Frequency
36MHz
Height
1.45mm
Interface
I2C, SPI, IrDA, UART, USART, LIN
Lead Free
Lead Free
Length
14mm
Max Frequency
36MHz
Max Operating Temperature
85°C
Max Power Dissipation
434mW
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Number of ADC Channels
16
Number of Bits
32
Number of I/Os
80
Number of I2C Channels
2
Number of Programmable I/O
100
Number of PWM Channels
4
Number of SPI Channels
2
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Temp Sensor, I2C
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F1
Termination
SMD/SMT
Watchdog Timer
Yes
Width
14.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F101VBT6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F101VBT6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

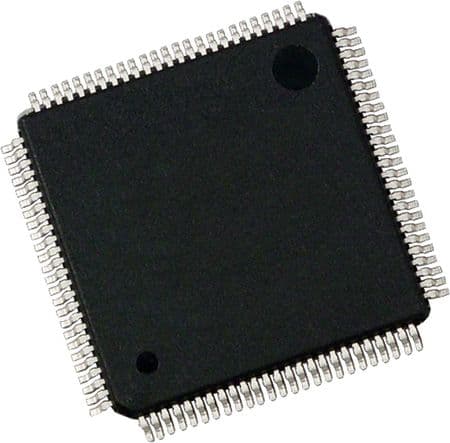

Product Images
