32-bit ARM Cortex-M3 microcontroller featuring a 36MHz CPU and 384KB FLASH memory. This LQFP-packaged MCU offers 48KB RAM, 112 programmable I/Os, and multiple interfaces including I2C (2 channels), SPI (3 channels), IrDA, UART, and USART. Integrated peripherals include POR, PWM (4 channels), WDT, DMA, and a temperature sensor, supported by 6 timers/counters and 16 ADC channels. Operates from 2V to 3.6V supply voltage with a temperature range of -40°C to 85°C.
Frequency36MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F101ZDT6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
36MHz
Height
1.45mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
20mm
Max Frequency
36MHz
Max Operating Temperature
85°C
Max Power Dissipation
666mW
Max Supply Voltage
3.6V
Memory Size
384KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Number of ADC Channels
16
Number of I/Os
112
Number of I2C Channels
2
Number of Programmable I/O
112
Number of PWM Channels
4
Number of SPI Channels
3
Number of Timers/Counters
6
Oscillator Type
Internal
Package Quantity
60
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Temp Sensor, I2C
Radiation Hardening
No
RAM Size
48KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F1
Watchdog Timer
Yes
Width
20.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F101ZDT6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F101ZDT6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

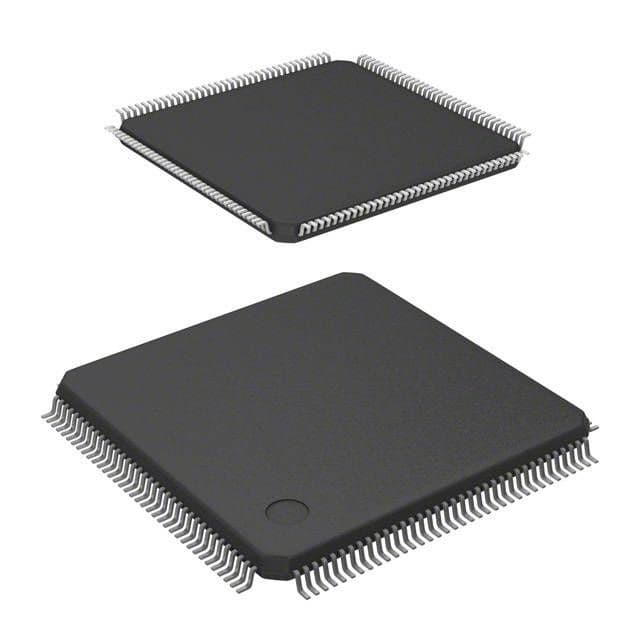

Product Images
