32-bit ARM Cortex-M3 microcontroller featuring 72 MHz CPU speed and 32KB FLASH memory. This LQFP packaged MCU offers 10KB RAM, 37 I/Os, and interfaces including I2C, SPI, and USART. Operates from 2V to 3.6V with a temperature range of -40°C to 85°C. Includes 2 A/D converters with 10 channels each and 3 timers/counters.
Frequency72MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F103C6T6A technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Height
1.4mm
Interface
I2C, SPI, USART
Lead Free
Lead Free
Length
7mm
Max Frequency
72MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Nominal Supply Current
1.55uA
Number of A/D Converters
2
Number of ADC Channels
10
Number of Channels
10
Number of I/Os
37
Number of Timers/Counters
3
Package Quantity
1500
Packaging
Tray
RAM Size
10KB
RoHS Compliant
Yes
Series
STM32F103C6
Weight
0.006409oz
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F103C6T6A Datasheet
Download the complete datasheet for Stmicroelectronics STM32F103C6T6A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

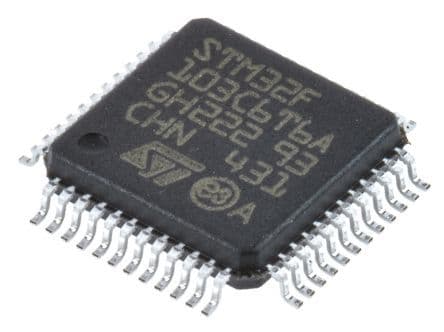

Product Images
