32-bit ARM Cortex-M3 microcontroller featuring 72MHz CPU speed and 64KB Flash memory. This MCU offers 20KB RAM, 51 programmable I/Os, and interfaces including I2C (2 channels), SPI (2 channels), USB, CAN, IrDA, UART, and USART. Includes 16 ADC channels, 4 timers/counters, and peripherals like POR, PWM, WDT, DMA, and a temperature sensor. Packaged in TFBGA with dimensions of 5mm x 5.15mm x 0.785mm, operating from 2V to 3.6V supply voltage.
Frequency72MHz
PackageTFBGA
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F103R8H6 technical specifications.
General
Package/Case
TFBGA
Core Architecture
ARM
Data Bus Width
32b
Frequency
72MHz
Height
0.785mm
Interface
I2C, SPI, USB, IrDA, UART, USART, CAN
Lead Free
Lead Free
Length
5mm
Max Frequency
72MHz
Max Operating Temperature
85°C
Max Power Dissipation
308mW
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Number of ADC Channels
16
Number of I/Os
51
Number of I2C Channels
2
Number of Programmable I/O
51
Number of SPI Channels
2
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
640
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Temp Sensor, I2C
Radiation Hardening
No
RAM Size
20KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F1
Watchdog Timer
Yes
Width
5.15mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F103R8H6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F103R8H6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

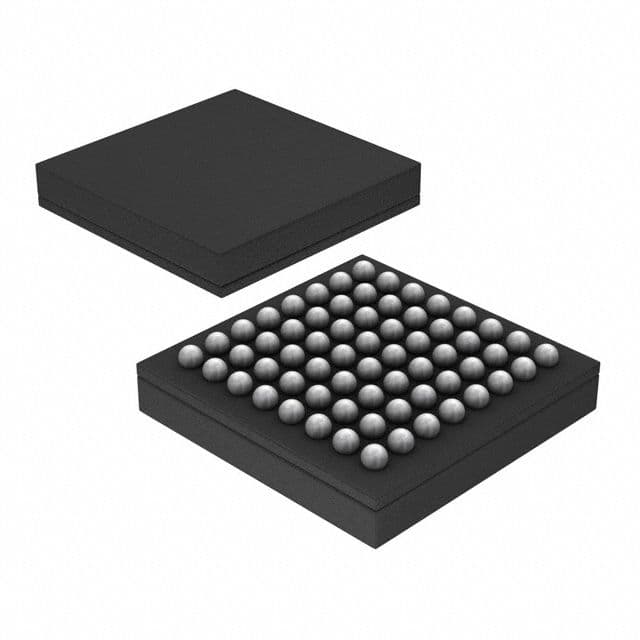

Product Images
