32-bit ARM Cortex-M3 microcontroller featuring 72MHz CPU speed and 128KB FLASH memory. This surface mount TFBGA package offers 51 I/Os, 21 ADC channels, and multiple interfaces including I2C (2), SPI (3), USB (1), CAN, IrDA, UART, USART, and LIN. Operating from 2V to 3.6V, it includes peripherals like POR, PWM, WDT, DMA, and a temperature sensor, with a maximum power dissipation of 308mW and an operating temperature range of -40°C to 105°C.
Frequency72MHz
PackageTFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F103RBH7 technical specifications.
General
| Package/Case | TFBGA |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 72MHz |
| Height | 1.45mm |
| Interface | I2C, SPI, USB, CAN, IrDA, UART, USART, LIN |
| Lead Free | Lead Free |
| Length | 10.2mm |
| Max Frequency | 72MHz |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 308mW |
| Max Supply Voltage | 3.6V |
| Memory Size | 128KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of ADC Channels | 21 |
| Number of I/Os | 51 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 51 |
| Number of SPI Channels | 3 |
| Number of Timers/Counters | 4 |
| Number of USB Channels | 1 |
| Oscillator Type | Internal |
| Package Quantity | 640 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT, DMA, Temp Sensor |
| Radiation Hardening | No |
| RAM Size | 20KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | STM32 F1 |
| Watchdog Timer | Yes |
| Width | 10.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STM32F103RBH7 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F103RBH7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

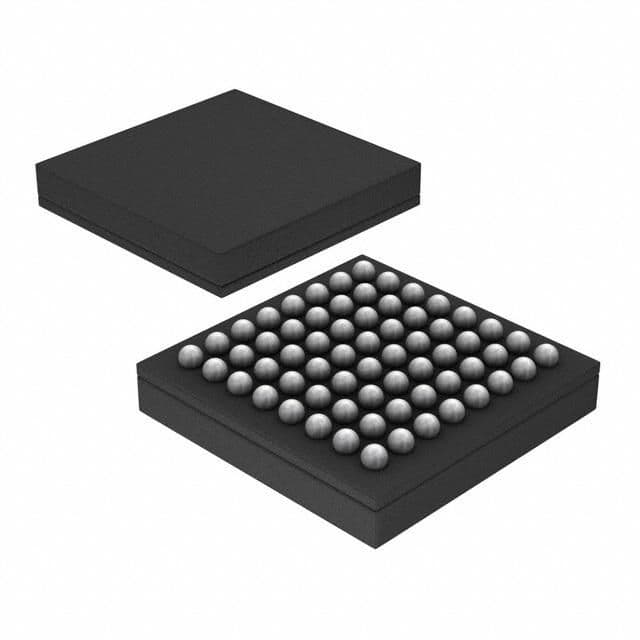

Product Images
