32-bit ARM Cortex-M3 microcontroller featuring a 72MHz CPU and 64KB of FLASH memory. This surface mount device offers 26 programmable I/Os, 10 ADC channels, and 12 PWM channels. Integrated peripherals include I2C, SPI, USB, CAN, UART, USART, LIN, IrDA, POR, WDT, DMA, and a temperature sensor. Operating within a 2V to 3.6V supply range, it boasts a wide operating temperature of -40°C to 85°C.
Frequency72MHz
PackageUFQFPN
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F103T8U6 technical specifications.
General
Address Bus Width
32b
Package/Case
UFQFPN
Core Architecture
ARM
Data Bus Width
32b
Density
64KB
Frequency
72MHz
Height
0.95mm
Interface
I2C, SPI, USB, IrDA, UART, USART, CAN, LIN
Lead Free
Lead Free
Length
6mm
Max Frequency
72MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
10
Number of Bits
32
Number of I/Os
26
Number of I2C Channels
1
Number of Programmable I/O
26
Number of PWM Channels
12
Number of SPI Channels
1
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
490
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Temp Sensor, I2C
Radiation Hardening
No
RAM Size
20KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F1
Termination
SMD/SMT
Watchdog Timer
Yes
Width
6.125mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F103T8U6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F103T8U6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

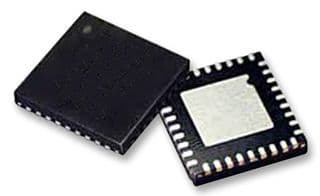

Product Images
