32-bit ARM Cortex-M3 microcontroller featuring 512KB Flash memory and 64KB RAM. Operates at a maximum frequency of 72MHz, with 80 programmable I/O pins. Supports multiple interfaces including I2C (2 channels), SPI (3 channels), USB, CAN, IrDA, UART, USART, and LIN. Includes 8 timers/counters, 16 ADC channels, and peripherals like POR, PWM, WDT, DMA, and a temperature sensor. Packaged in LFBGA with dimensions of 10mm x 10.15mm x 1.085mm, operating from 2V to 3.6V supply voltage.
Frequency72MHz
PackageLFBGA
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F103VEH6 technical specifications.
General
Package/Case
LFBGA
Core Architecture
ARM
Data Bus Width
32b
Frequency
72MHz
Height
1.085mm
Interface
I2C, SPI, USB, CAN, IrDA, UART, USART, LIN
Lead Free
Lead Free
Length
10mm
Max Frequency
72MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
500mW
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Supply Voltage
2V
Number of ADC Channels
16
Number of I/Os
80
Number of I2C Channels
2
Number of Programmable I/O
80
Number of SPI Channels
3
Number of Timers/Counters
8
Oscillator Type
Internal
Package Quantity
184
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Temp Sensor, I2C
Radiation Hardening
No
RAM Size
64KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32 F1
Watchdog Timer
Yes
Width
10.15mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F103VEH6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F103VEH6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

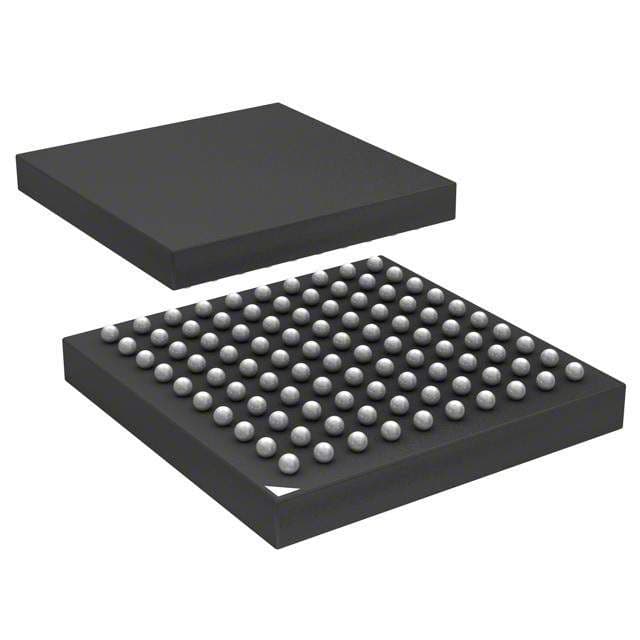

Product Images
