32-bit ARM Cortex-M3 microcontroller featuring 512KB Flash memory and a 72MHz CPU. This MCU offers 64KB RAM, 112 programmable I/Os, and extensive interfaces including I2C, SPI, USB, CAN, UART, and more. Integrated peripherals include POR, PWM, WDT, DMA, and temperature sensor. Operating voltage ranges from 2V to 3.6V, with a maximum power dissipation of 666mW. Packaged in LQFP, this RoHS compliant component is suitable for demanding applications.
Frequency72MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F103ZET6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Density
512KB
Frequency
72MHz
Height
1.45mm
Interface
I2C, SPI, USB, CAN, IrDA, UART, USART, LIN, I2S, SDIO
Lead Free
Lead Free
Length
20mm
Max Frequency
72MHz
Max Operating Temperature
85°C
Max Power Dissipation
666mW
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Nominal Supply Current
1.9uA
Number of A/D Converters
3
Number of ADC Channels
21
Number of Bits
32
Number of Channels
21
Number of D/A Converters
2
Number of I/Os
112
Number of I2C Channels
2
Number of Programmable I/O
112
Number of PWM Channels
16
Number of SPI Channels
3
Number of Timers/Counters
8
Oscillator Type
Internal
Package Quantity
60
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Temp Sensor, I2C
Radiation Hardening
No
RAM Size
64KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32 F1
Termination
SMD/SMT
Watchdog Timer
Yes
Width
20.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F103ZET6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F103ZET6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

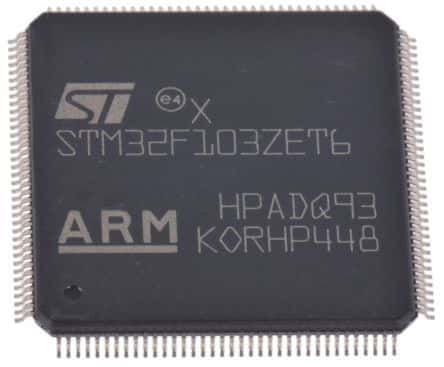

Product Images
