32-bit ARM Cortex-M3 microcontroller featuring 256KB FLASH memory and 64KB RAM, operating at up to 72MHz. This MCU offers extensive connectivity with interfaces including USB 2.0 OTG, CAN, I2C (2 channels), SPI (3 channels), UART, USART, LIN, and I2S. Equipped with 16 ADC channels and 16 PWM channels, it provides 51 programmable I/Os and 7 timers/counters. Packaged in an LQFP with SMD/SMT termination, this RoHS compliant component operates from -40°C to 85°C.
Frequency72MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F105RCT6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Density
256KB
Frequency
72MHz
Height
1.45mm
Interface
I2C, SPI, USB, CAN, IrDA, UART, USART, LIN, I2S
Lead Free
Lead Free
Length
10mm
Max Frequency
72MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
444mW
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH,
Min Supply Voltage
2V
Number of ADC Channels
16
Number of I/Os
51
Number of I2C Channels
2
Number of Programmable I/O
51
Number of PWM Channels
16
Number of SPI Channels
3
Number of Timers/Counters
7
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Voltage Detect, I2C
Radiation Hardening
No
RAM Size
64KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32 F1
Termination
SMD/SMT
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F105RCT6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F105RCT6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

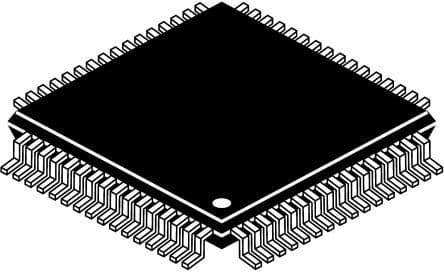

Product Images
