32-bit ARM Cortex-M3 microcontroller featuring 72MHz CPU speed and 128KB FLASH memory. Includes 64KB RAM, 80 programmable I/Os, and 16 ADC channels. Offers extensive connectivity with I2C, SPI, USB 2.0 OTG, CAN, UART, and more. Operates from 2V to 3.6V supply, with a temperature range of -40°C to 85°C. Surface mount LQFP package.
Frequency72MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F105VBT6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Density
128KB
Frequency
72MHz
Height
1.45mm
Interface
I2C, SPI, USB, IrDA, UART, USART, CAN, LIN, I2S
Lead Free
Lead Free
Length
14mm
Max Frequency
72MHz
Max Operating Temperature
85°C
Max Power Dissipation
434mW
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Nominal Supply Current
1.9uA
Number of A/D Converters
2
Number of ADC Channels
16
Number of Channels
16
Number of D/A Converters
2
Number of I/Os
80
Number of I2C Channels
2
Number of Programmable I/O
80
Number of PWM Channels
16
Number of SPI Channels
3
Number of Timers/Counters
7
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Voltage Detect, I2C
Radiation Hardening
No
RAM Size
64KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F1
Termination
SMD/SMT
Watchdog Timer
Yes
Width
14.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F105VBT6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F105VBT6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

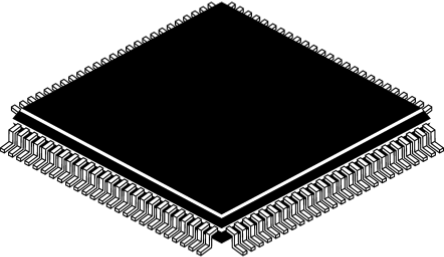

Product Images
