STMICROELECTRONICS

STM32F205RCT6

Datasheet

32b ARM Cortex-M3 MCU, 120MHz, 256KB Flash, 100KB RAM, LQFP

Stmicroelectronics

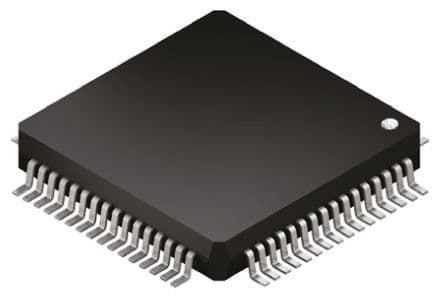

STM32F205RCT6

Name: STM32F205RCT6 Stmicroelectronics
Brand: Stmicroelectronics
SKU: STM32F205RCT6

32b ARM Cortex-M3 MCU, 120MHz, 256KB Flash, 100KB RAM, LQFP

32-bit ARM Cortex-M3 microcontroller featuring a 120MHz CPU and ART Accelerator for high performance. This MCU offers 256KB FLASH and 100KB RAM, with extensive interfaces including I2C, SPI, USB, UART, CAN, and Ethernet. Equipped with 16 analog input channels, 2 analog output channels, and 51 I/O pins, it supports a wide operating temperature range of -40°C to 85°C and operates from 1.8V to 3.6V. The LQFP package houses 14 timers, DMA, and watchdog timer functionality.

Frequency120MHz

PackageLQFP

Quick Jump:

Technical Specifications

Stmicroelectronics STM32F205RCT6 technical specifications.

General

Package/Case	LQFP
Core Architecture	ARM
Data Bus Width	32b
Frequency	120MHz
Height	1.45mm
Interface	I2C, SPI, USB, IrDA, MMC, UART, USART, SDIO, CAN, LIN, I2S
Lead Free	Lead Free
Length	10.2mm
Max Frequency	120MHz
Max Operating Temperature	85°C
Memory Size	256KB
Memory Type	FLASH,
Min Operating Temperature	-40°C
Max Power Dissipation	444mW
Max Supply Voltage	3.6V
Min Supply Voltage	1.8V
Nominal Supply Current	2.5uA
Number of A/D Converters	3
Number of ADC Channels	16
Number of Channels	16
Number of D/A Converters	2
Number of Ethernet Channels	1
Number of I/Os	51
Number of I2C Channels	3
Number of Programmable I/O	16
Number of PWM Channels	2
Number of SPI Channels	3
Number of Timers/Counters	14
Number of UART Channels	2
Number of USB Channels	2
Oscillator Type	Internal
Package Quantity	160
Packaging	Tray
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD, I2C
Radiation Hardening	No
RAM Size	100KB
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	STM32F2
Watchdog Timer	Yes
Width	10.2mm
