High-performance 32-bit microcontroller featuring an ARM Cortex-M3 core operating at 120MHz, enhanced by an ART Accelerator for efficient Flash memory access. This MCU offers 1 Mbyte of FLASH memory and 128KB of RAM, with 114 programmable I/Os. Integrated peripherals include multiple I2C, SPI, UART, and USB interfaces, alongside CAN, IrDA, MMC, LIN, SDIO, and I2S support. It boasts 24 ADC channels, 4 PWM channels, 14 timers/counters, and a watchdog timer, all within an LQFP package. Operating from 1.8V to 3.6V, this RoHS compliant component is designed for demanding applications.
Frequency120MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F205ZGT6 technical specifications.
General
| Package/Case | LQFP |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 120MHz |
| Height | 1.45mm |
| Interface | I2C, SPI, USB, CAN, IrDA, MMC, UART, USART, LIN, SDIO, I2S |
| Lead Free | Lead Free |
| Length | 20.2mm |
| Max Frequency | 120MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 500mW |
| Max Supply Voltage | 3.6V |
| Memory Size | 1024KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of ADC Channels | 24 |
| Number of I/Os | 114 |
| Number of I2C Channels | 3 |
| Number of Programmable I/O | 24 |
| Number of PWM Channels | 4 |
| Number of SPI Channels | 3 |
| Number of Timers/Counters | 14 |
| Number of UART Channels | 2 |
| Number of USB Channels | 2 |
| Oscillator Type | Internal |
| Package Quantity | 60 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD, I2C |
| Radiation Hardening | No |
| RAM Size | 128KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | STM32 F2 |
| Watchdog Timer | Yes |
| Width | 20.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STM32F205ZGT6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F205ZGT6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

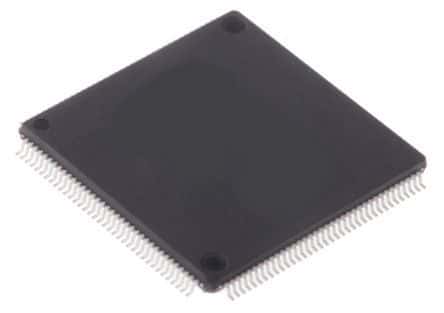

Product Images
