Stmicroelectronics
STM32F405ZGT6J
High-performance foundation line, Arm Cortex-M4 core with DSP and FPU, 1 Mbyte of Flash memory, 168 MHz CPU, ART Accelerator, FSMC
Frequency168MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F405ZGT6J technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
168MHz
Interface
I2C, SPI, USB, IrDA, UART, USART, EBI/EMI
Max Frequency
168MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
1MB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Number of I/Os
114
Oscillator Type
Internal
Package Quantity
60
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD
RAM Size
192KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F4
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F405ZGT6J Datasheet
Download the complete datasheet for Stmicroelectronics STM32F405ZGT6J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

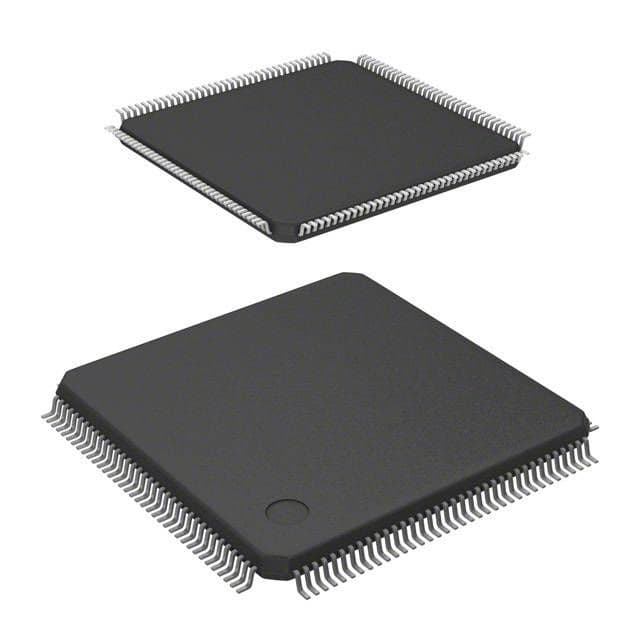

Product Images
