32-bit ARM Cortex-M4 microcontroller featuring a 168MHz CPU with DSP and FPU capabilities. Offers 1MB of FLASH memory and 192KB of RAM, supported by an ART Accelerator for enhanced performance. Includes extensive connectivity with I2C, SPI, USB, Ethernet, UART, CAN, and I2S interfaces, alongside 140 programmable I/Os. Peripherals include DMA, LCD controller, and watchdog timer, all housed in an LQFP package.
Frequency168MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F417IGT6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
168MHz
Height
1.45mm
Interface
I2C, SPI, USB, Ethernet, IrDA, UART, USART, EBI/EMI, CAN, I2S
Lead Free
Lead Free
Length
24.1mm
Max Frequency
168MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
1024KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of ADC Channels
24
Number of Ethernet Channels
1
Number of I/Os
140
Number of I2C Channels
2
Number of Programmable I/O
140
Number of PWM Channels
2
Number of SPI Channels
3
Number of Timers/Counters
14
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
40
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD
Radiation Hardening
No
RAM Size
192KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F4
Watchdog Timer
Yes
Width
24.1mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F417IGT6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F417IGT6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

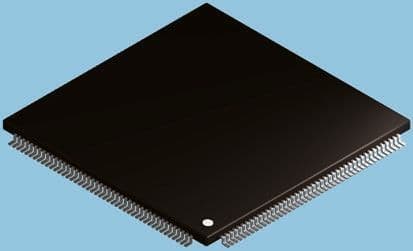

Product Images
