Stmicroelectronics

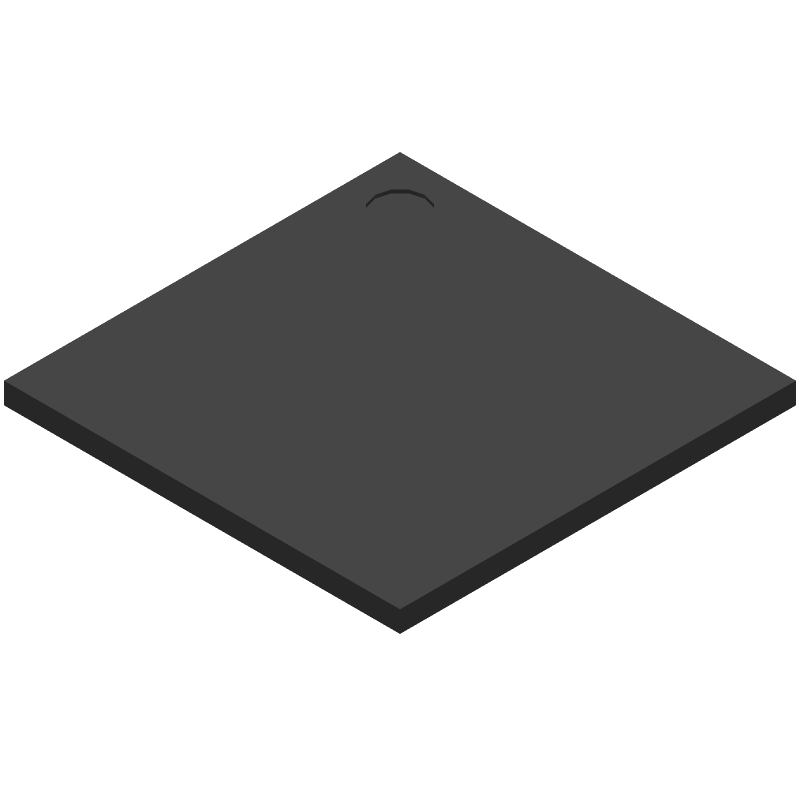

STM32F765NIH6
High-performance and DSP with FPU, Arm Cortex-M7 MCU with 2 Mbytes of Flash memory, 216 MHz CPU, Art Accelerator, L1 cache, SDRAM, DFSDM
Frequency216
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F765NIH6 technical specifications.
General
| Number of Terminals | 216 |
| Terminal Position | BOTTOM |
| Width | 13 |
| Length | 13 |
| Supply Voltage-Nom | 3 |
| Supply Voltage-Min | 1.8 |
| Supply Voltage-Max | 3.6 |
| Clock Frequency-Max | 26 |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
| Number of I/O Lines | 168 |
| External Data Bus Width | 0 |
| Address Bus Width | 0 |
| Bit Size | 32 |
| Speed | 216 |
| PWM Channels | YES |
| Has ADC | YES |
| DMA Channels | YES |
Compliance
| REACH | Compliant |
| Military Spec | False |
Datasheet
Stmicroelectronics STM32F765NIH6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F765NIH6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
