Ultra-low-power 32-bit Arm Cortex-M0+ microcontroller featuring 64KB FLASH memory and 8KB RAM. Operates at up to 32MHz with 50 programmable I/Os. Includes I2C, SPI, UART, USART, and I2S interfaces, along with 5 timers/counters and DMA. Packaged in TFBGA, this RoHS compliant MCU supports a supply voltage range of 1.65V to 3.6V and operates from -40°C to 85°C.
Frequency32MHz
PackageTFBGA
Quick Jump:
Technical Specifications
Stmicroelectronics STM32L051R8H6 technical specifications.
General
Package/Case
TFBGA
Core Architecture
ARM
Data Bus Width
32b
Frequency
32MHz
Interface
I2C, SPI, IrDA, UART, USART, I2S
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
327mW
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
1.65V
Number of I/Os
51
Number of Programmable I/O
50
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
3840
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32 L0
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32L051R8H6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32L051R8H6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

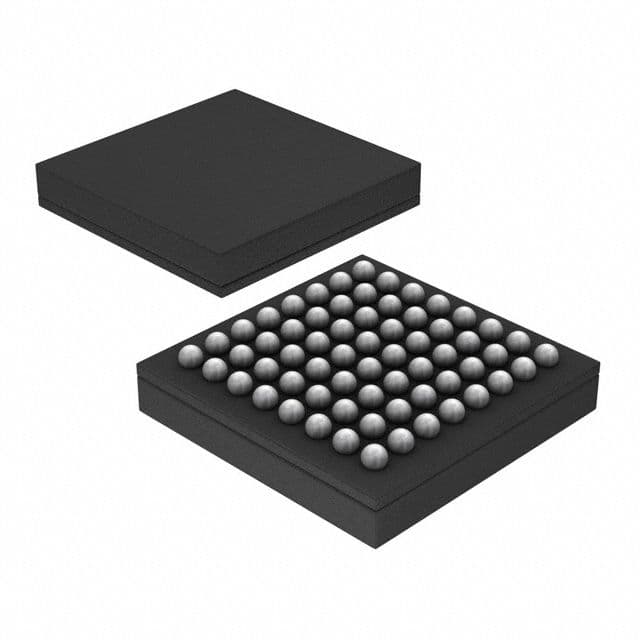

Product Images
