Ultra-low power 32-bit ARM Cortex-M0+ microcontroller featuring 64KB FLASH memory and 8KB RAM. Operates at up to 32MHz with 27 programmable I/Os. Supports I2C, SPI, USB, IrDA, UART, USART, and I2S interfaces. Includes 5 timers/counters, DMA, and a watchdog timer. Packaged in UFQFPN for surface mounting, with an operating temperature range of -40°C to 85°C.
Frequency32MHz
PackageUFQFPN
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM32L052K8U6 technical specifications.
General
Package/Case
UFQFPN
Core Architecture
ARM
Data Bus Width
32b
Frequency
32MHz
Interface
I2C, SPI, USB, IrDA, UART, USART, I2S
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Power Dissipation
351mW
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of I/Os
27
Number of Programmable I/O
27
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
2940
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32L0
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32L052K8U6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32L052K8U6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

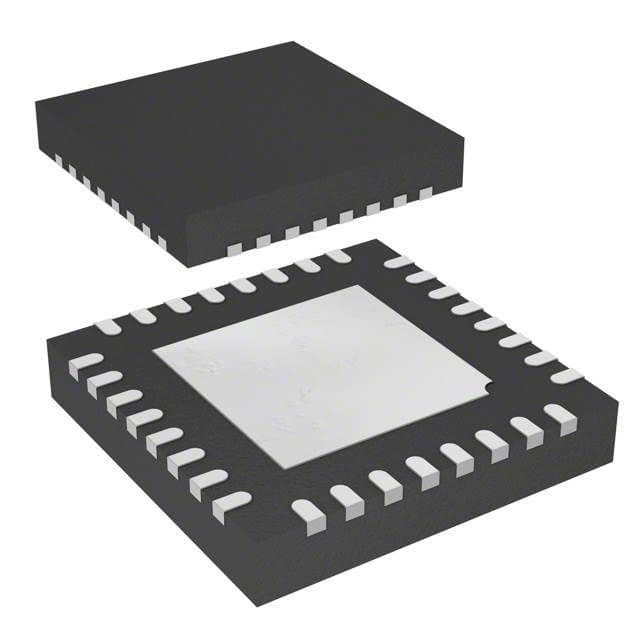

Product Images
