32-bit ARM Cortex-M3 microcontroller featuring 32MHz CPU speed and 32KB FLASH memory. Integrated peripherals include I2C, SPI, USB, IrDA, UART, USART, DMA, LCD controller, and 8 timers/counters. Operating voltage ranges from 1.65V to 3.6V, with a maximum power dissipation of 339mW. This TFBGA packaged MCU offers 51 I/Os and operates within a temperature range of -40°C to 85°C.
Frequency32MHz
PackageTFBGA
Quick Jump:
Technical Specifications
Stmicroelectronics STM32L152R6H6 technical specifications.
General
Package/Case
TFBGA
Core Architecture
ARM
Data Bus Width
32b
Frequency
32MHz
Interface
I2C, SPI, USB, IrDA, UART, USART
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
339mW
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
1.65V
Number of I/Os
51
Number of Programmable I/O
51
Number of Timers/Counters
8
Oscillator Type
Internal
Package Quantity
640
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD
Radiation Hardening
No
RAM Size
10KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32L1
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32L152R6H6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32L152R6H6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

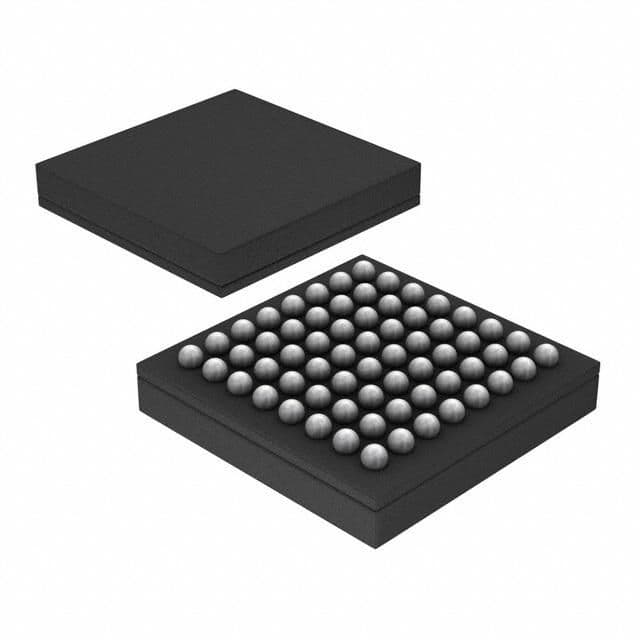

Product Images
