Surface mount power management IC featuring a 5-pin supervisor with watchdog timer and push-button reset functionality. Monitors a single voltage with a reset threshold range of 2.89V to 2.96V. Operates with a maximum supply voltage of 5.5V and a low operating supply current of 12µA. Packaged in a compact SOT-23-5 (2.9mm x 1.6mm x 1.15mm) for tape and reel distribution. Offers active high/low reset with a 140ms timeout and a maximum power dissipation of 320mW.
PackageSOT-23-5
Current12uA
MountingSurface Mount
Power320mW
Quick Jump:
Technical Specifications
Stmicroelectronics STM6321SWY6F technical specifications.
General
| Package/Case | SOT-23-5 |
| Height | 1.15mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 320mW |
| Max Reset Threshold Voltage | 2.96V |
| Min Reset Threshold Voltage | 2.89V |
| Max Supply Current | 12uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 12uA |
| Overvoltage Threshold | 2.96V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 320mW |
| Radiation Hardening | No |
| Reset | Active High/Active Low |
| Reset Timeout | 140ms |
| RoHS Compliant | Yes |
| Supply Current | 12uA |
| Threshold Voltage | 2.93V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 2.89V |
| Watchdog Timer | Yes |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STM6321SWY6F Datasheet
Download the complete datasheet for Stmicroelectronics STM6321SWY6F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

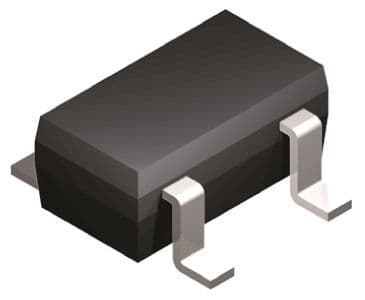

Product Images
