The STM6503SEAADG6F is a reset timer IC from Stmicroelectronics, designed for surface mount applications. It operates within a temperature range of -40°C to 85°C and can handle supply voltages between 1V and 5.5V. The device features a single output and monitors a single voltage, with a reset threshold voltage of 2.925V. It is available in a WFDFN package, packaged in tape and reel quantities of 3000.
PackageWFDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM6503SEAADG6F technical specifications.
General
| Package/Case | WFDFN |
| Height | 0.75mm |
| Lead Free | Lead Free |
| Length | 2.1mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 2.998V |
| Min Reset Threshold Voltage | 2.85V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Voltages Monitored | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reset | Active Low |
| Reset Timeout | 140ms |
| RoHS Compliant | Yes |
| Series | Smart Reset™ |
| Threshold Voltage | 2.925V |
| Type | Reset Timer |
| Weight | 0.001764oz |
| Width | 2.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STM6503SEAADG6F Datasheet
Download the complete datasheet for Stmicroelectronics STM6503SEAADG6F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

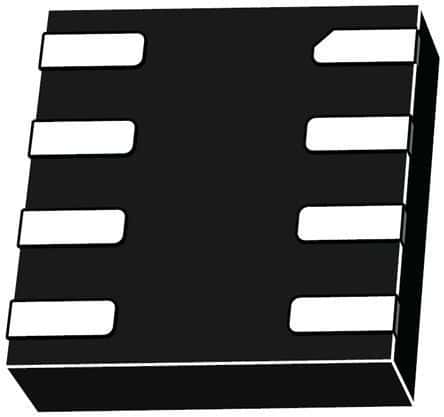

Product Images
