Surface mount power management IC featuring a watchdog timer and push-button reset. Monitors a single voltage with an accuracy of 2.5%, offering reset thresholds between 3.04V and 3.11V. Operates with a maximum supply voltage of 5.5V and a typical supply current of 12uA. Housed in a compact SOT-23-5 package, this RoHS compliant component has a maximum power dissipation of 320mW and a reset timeout of 140ms.
PackageSOT-23-5
Current12uA
MountingSurface Mount
Power320mW
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Stmicroelectronics STM6821TWY6F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Stmicroelectronics STM6821TWY6F technical specifications.
General
| Accuracy | 2.5% |
| Package/Case | SOT-23-5 |
| Height | 1.15mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 320mW |
| Max Reset Threshold Voltage | 3.11V |
| Min Reset Threshold Voltage | 3.04V |
| Max Supply Current | 12uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 12uA |
| Output | TOTEM-POLE |
| Overvoltage Threshold | 3.11V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 320mW |
| Reset | Active High |
| Reset Timeout | 140ms |
| RoHS Compliant | Yes |
| Supply Current | 12uA |
| Threshold Voltage | 3.08V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 3.04V |
| Watchdog Timer | Yes |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics STM6821TWY6F Datasheet
Download the complete datasheet for Stmicroelectronics STM6821TWY6F to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

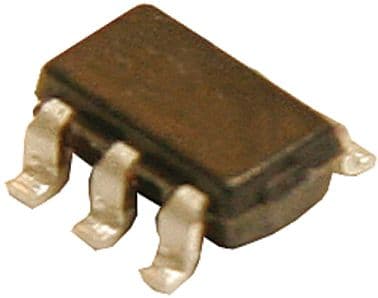

Product Images
