Surface mountable, 5-pin power management IC featuring a watchdog timer and push-button reset. Monitors a single voltage with a precise 2V threshold, offering undervoltage detection at 1.97V and overvoltage detection at 2.03V. Operates from 1V to 5.5V with a low supply current of 12uA and a maximum power dissipation of 320mW. Includes an active-low reset with a 140ms timeout. Packaged in a SOT-23-5, this lead-free, RoHS-compliant component is ideal for general power supervision applications.
PackageSOT-23-5
Current12uA
MountingSurface Mount
Power320mW
Quick Jump:
Technical Specifications
Stmicroelectronics STM6822YWY6F technical specifications.
General
Package/Case
SOT-23-5
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
320mW
Max Reset Threshold Voltage
2.03V
Min Reset Threshold Voltage
1.97V
Max Supply Current
12uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Voltages Monitored
1
Operating Supply Current
12uA
Overvoltage Threshold
2.03V
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
320mW
Reset
Active Low
Reset Timeout
140ms
RoHS Compliant
Yes
Supply Current
12uA
Threshold Voltage
2V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
1.97V
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM6822YWY6F Datasheet
Download the complete datasheet for Stmicroelectronics STM6822YWY6F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

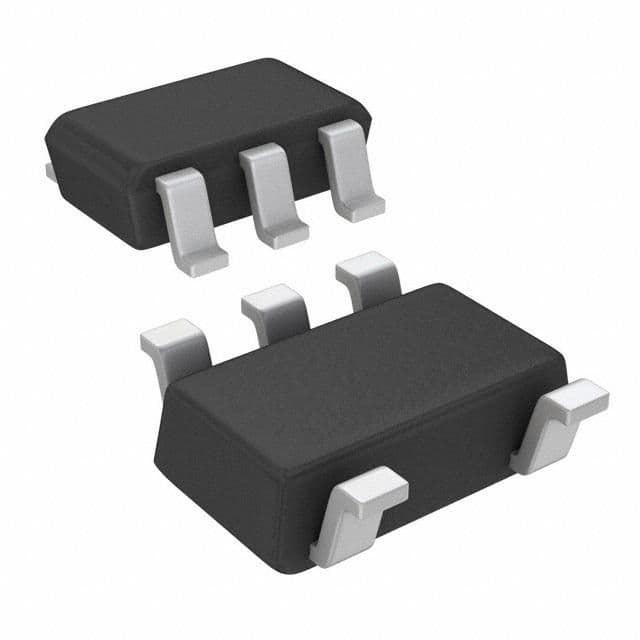

Product Images
