Ultra-low-power 8-bit microcontroller featuring a 16 MHz CPU and 32 KB of FLASH memory. This MCU offers 41 programmable I/O pins, 2 KB of RAM, and integrated EEPROM. Communication interfaces include I2C, SPI, IrDA, UART, and USART. Operating from 1.8V to 3.6V, it boasts 4 timers/counters and peripherals like DMA, POR, PWM, and a watchdog timer. Packaged in UFQFPN for surface mounting, this RoHS compliant component operates between -40°C and 125°C.
Frequency16MHz
PackageUFQFPN
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM8L151C6U3 technical specifications.
General
Package/Case
UFQFPN
Data Bus Width
8b
Frequency
16MHz
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH, , ROM
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of I/Os
41
Number of Programmable I/O
41
Number of Timers/Counters
4
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM8L EnergyLite
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM8L151C6U3 Datasheet
Download the complete datasheet for Stmicroelectronics STM8L151C6U3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

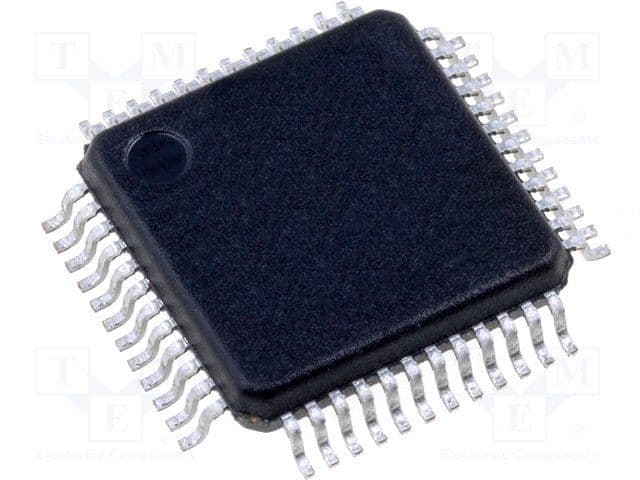

Product Images
