Ultra-low-power 8-bit microcontroller featuring 8KB Flash memory and 1KB RAM. Operates at up to 16MHz with an 8-bit data bus width. Offers I2C, SPI, IrDA, UART, and USART interfaces, along with 18 programmable I/Os. Includes 3 timers/counters, DMA, and a watchdog timer. Packaged in UFQFPN for surface mounting, operating from 1.8V to 3.6V, with a temperature range of -40°C to 85°C.
Frequency16MHz
PackageUFQFPN
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM8L151F3U6TR technical specifications.
General
Package/Case
UFQFPN
Data Bus Width
8b
Frequency
16MHz
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
85°C
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
196mW
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of I/Os
18
Number of Programmable I/O
18
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
3000
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
STM8L EnergyLite
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM8L151F3U6TR Datasheet
Download the complete datasheet for Stmicroelectronics STM8L151F3U6TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

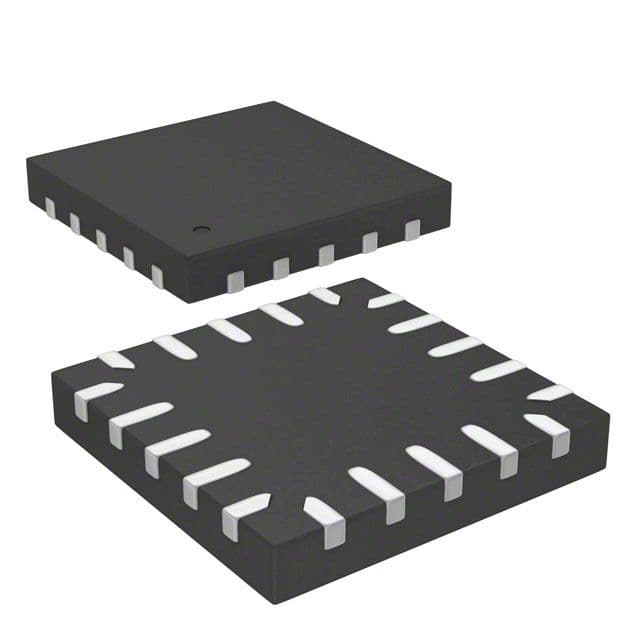

Product Images
