8-bit microcontroller (MCU) featuring 8KB Flash memory and a 16MHz CPU. This surface mount device offers 16 programmable I/Os, 5 analog-to-digital converter channels, and 2 PWM channels. Integrated peripherals include I2C, SPI, UART, USART, LIN, IrDA interfaces, along with Brown-out Detect/Reset, POR, and a Watchdog Timer. Operating from 2.95V to 5.5V, it functions within a -40°C to 85°C temperature range.
Frequency16MHz
PackageUFQFPN
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM8S003F3U6TR technical specifications.
General
Package/Case
UFQFPN
Data Bus Width
8b
Frequency
16MHz
Height
0.55mm
Interface
I2C, SPI, IrDA, UART, USART, LIN
Lead Free
Lead Free
Length
3mm
Max Frequency
16MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
220mW
Max Supply Voltage
5.5V
Memory Size
8KB
Memory Type
FLASH,
Min Supply Voltage
2.95V
Mount
Surface Mount
Nominal Supply Current
5uA
Number of A/D Converters
5
Number of ADC Channels
5
Number of I/Os
16
Number of I2C Channels
1
Number of Programmable I/O
16
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
7
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
3000
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM8S
Watchdog Timer
Yes
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM8S003F3U6TR Datasheet
Download the complete datasheet for Stmicroelectronics STM8S003F3U6TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

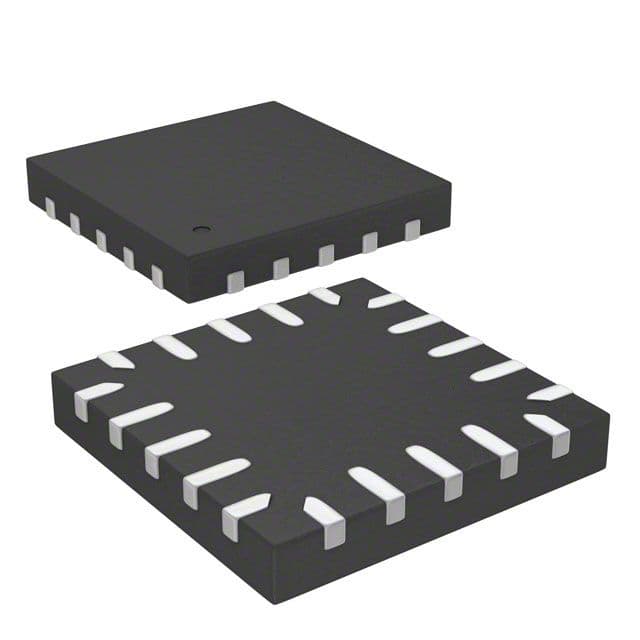

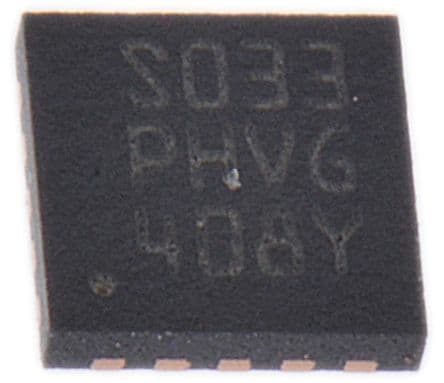

Product Images
