8-bit microcontroller (MCU) featuring 4KB FLASH memory and 1KB RAM, operating at a 16MHz CPU frequency. This surface mount device supports I2C, SPI, IrDA, UART, USART, and LIN interfaces, with 16 programmable I/O pins. It includes 7 timers/counters, integrated EEPROM, and peripherals such as Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Designed for a supply voltage range of 2.95V to 5.5V, it operates from -40°C to 85°C and is RoHS compliant.
Frequency16MHz
PackageUFQFPN
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM8S103F2U6TR technical specifications.
General
Package/Case
UFQFPN
Data Bus Width
8b
Frequency
16MHz
Interface
I2C, SPI, IrDA, UART, USART, LIN
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
220mW
Max Supply Voltage
5.5V
Memory Size
4KB
Memory Type
FLASH,
Min Supply Voltage
2.95V
Mount
Surface Mount
Number of I/Os
16
Number of Programmable I/O
16
Number of Timers/Counters
7
Oscillator Type
Internal
Package Quantity
3000
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
STM8S
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM8S103F2U6TR Datasheet
Download the complete datasheet for Stmicroelectronics STM8S103F2U6TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

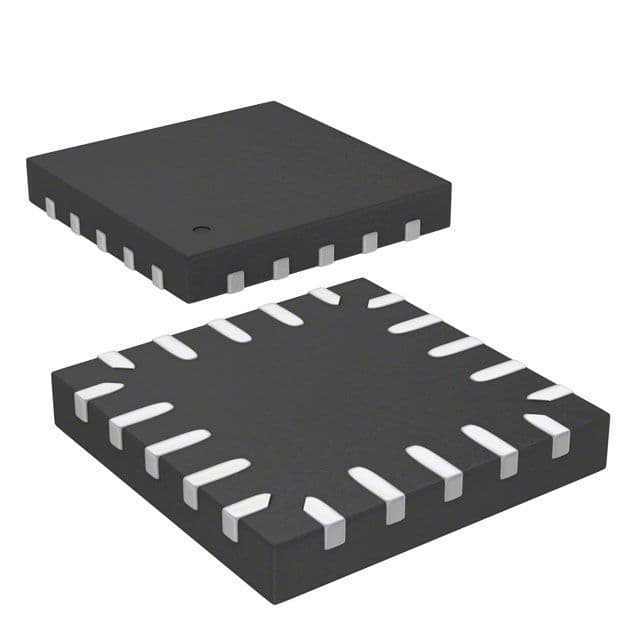

Product Images
