8-bit microcontroller featuring 8KB FLASH memory and 1KB RAM, operating at a 16MHz CPU frequency. This surface mount device, housed in a TSSOP package, offers 16 programmable I/Os and supports I2C, SPI, IrDA, UART, USART, and LIN interfaces. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, WDT, and 7 timers/counters, with 5 ADC channels for analog input. Designed for a supply voltage range of 2.95V to 5.5V, it operates from -40°C to 85°C and is RoHS compliant.
Frequency16MHz
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM8S103F3P6 technical specifications.
General
Package/Case
TSSOP
Data Bus Width
8b
Frequency
16MHz
Height
1.05mm
Interface
I2C, SPI, IrDA, UART, USART, LIN
Lead Free
Lead Free
Length
6.6mm
Max Frequency
16MHz
Max Operating Temperature
85°C
Max Power Dissipation
238mW
Max Supply Voltage
5.5V
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.95V
Mount
Surface Mount
Number of ADC Channels
5
Number of I/Os
16
Number of I2C Channels
1
Number of Programmable I/O
16
Number of PWM Channels
3
Number of SPI Channels
1
Number of Timers/Counters
7
Number of UART Channels
1
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
STM8S
Watchdog Timer
Yes
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM8S103F3P6 Datasheet
Download the complete datasheet for Stmicroelectronics STM8S103F3P6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

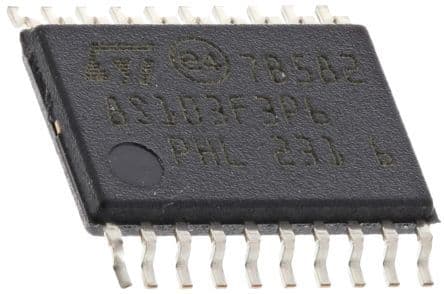

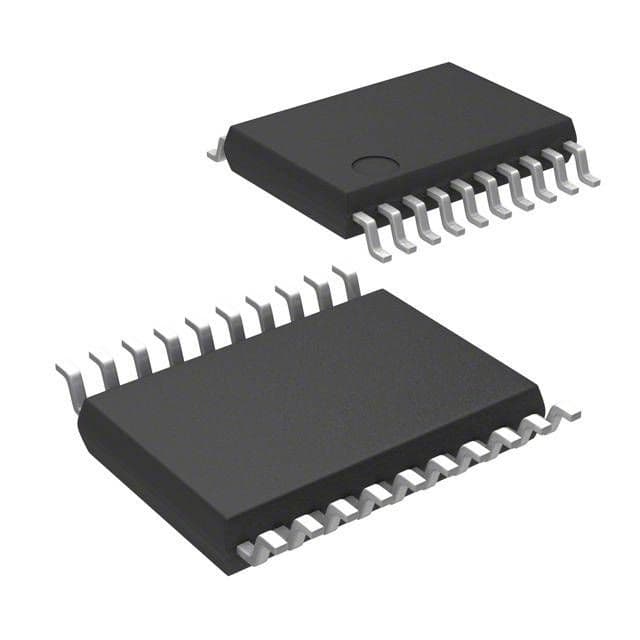

Product Images
