8-bit Microcontroller (MCU) featuring 32KB FLASH memory and 2KB RAM. Operates at a 16MHz CPU frequency with a data bus width of 8 bits. Offers 38 programmable I/Os, 10 ADC channels, and multiple communication interfaces including I2C, SPI, UART, USART, and LIN. Includes integrated peripherals such as Brown-out Detect, POR, PWM, and a Watchdog Timer. Packaged in an LQFP surface mount case, this lead-free component operates from -40°C to 85°C with a supply voltage range of 2.95V to 5.5V.
Frequency16MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM8S105C6T6 technical specifications.
General
Package/Case
LQFP
Data Bus Width
8b
Density
32KB
Frequency
16MHz
Height
1.45mm
Interface
I2C, SPI, IrDA, UART, USART, LIN
Lead Free
Lead Free
Length
7.2mm
Max Frequency
16MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
443mW
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
2.95V
Mount
Surface Mount
Number of ADC Channels
10
Number of I/Os
38
Number of I2C Channels
1
Number of Programmable I/O
38
Number of PWM Channels
3
Number of SPI Channels
1
Number of Timers/Counters
9
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
250
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM8S
Termination
SMD/SMT
Watchdog Timer
Yes
Width
7.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM8S105C6T6 Datasheet
Download the complete datasheet for Stmicroelectronics STM8S105C6T6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

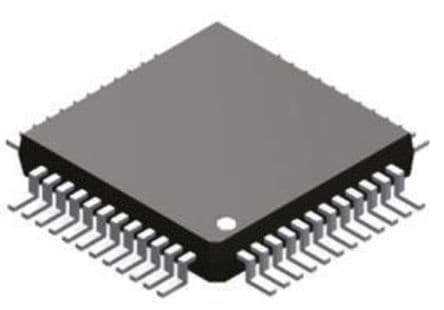

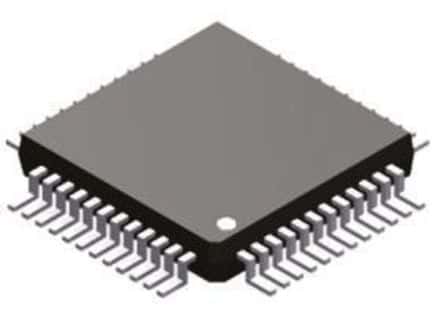

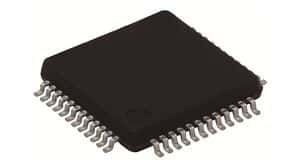

Product Images
