8-bit microcontroller featuring 64KB FLASH memory and 4KB RAM, operating at a 24MHz CPU frequency. Supports I2C, SPI, UART, IrDA, USART, and LIN interfaces with 34 programmable I/Os. Includes 8 timers/counters, Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Packaged in LQFP for surface mounting, with a voltage range of 2.95V to 5.5V and an operating temperature of -40°C to 85°C.
Frequency24MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM8S207S8T6CTR technical specifications.
General
Package/Case
LQFP
Data Bus Width
8b
Frequency
24MHz
Interface
I2C, SPI, UART, IrDA, USART, LIN
Lead Free
Lead Free
Max Frequency
24MHz
Max Operating Temperature
85°C
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
443mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.95V
Mount
Surface Mount
Number of I/Os
34
Number of Programmable I/O
34
Number of Timers/Counters
8
Oscillator Type
Internal
Package Quantity
1000
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
STM8S
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM8S207S8T6CTR Datasheet
Download the complete datasheet for Stmicroelectronics STM8S207S8T6CTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

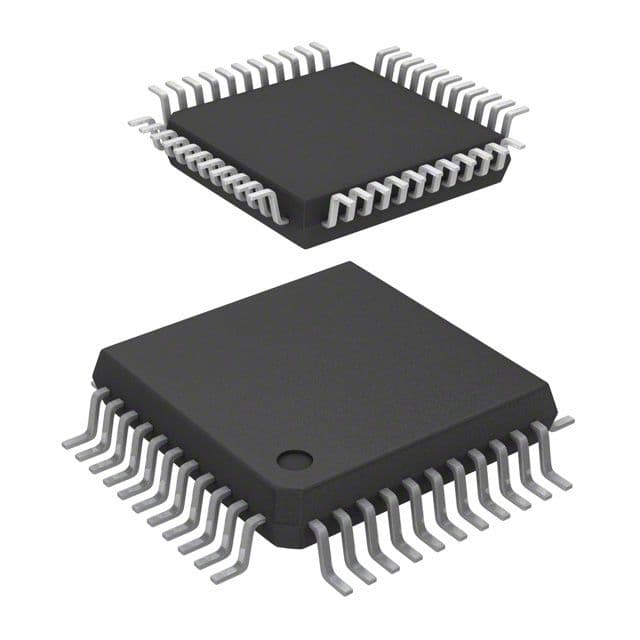

Product Images
