Dual channel power switch IC featuring a 5.5V maximum supply voltage and 500mA maximum output current per channel. Offers a low 105mR drain-to-source resistance and operates across a wide temperature range from -40°C to 85°C. Surface mountable in a SOIC package, this lead-free and RoHS compliant component is ideal for general power management applications.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STMPS2252MTR technical specifications.
General
Package/Case
SOIC
Drain to Source Resistance
105mR
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
2.7V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Input Voltage
5V
Number of Channels
2
Number of Outputs
2
On-state Resistance-Max
115MR
Operating Supply Voltage
5.5V
Output Current
0A
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
500mA
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STMPS2252MTR Datasheet
Download the complete datasheet for Stmicroelectronics STMPS2252MTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

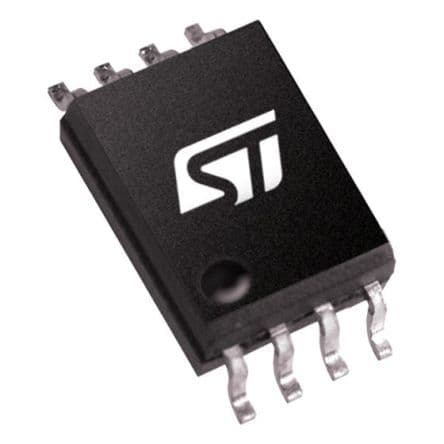

Product Images
